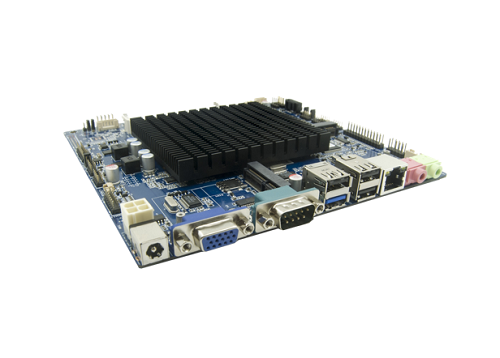

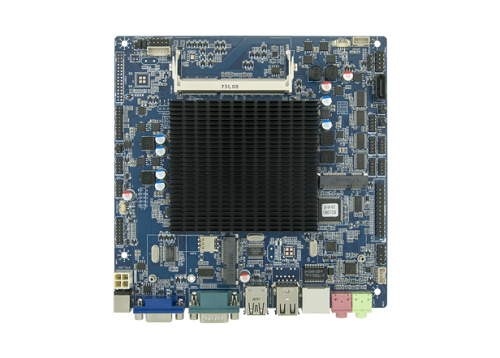

Intel Celeron J1900 SOC

1 x SO-DIMM DDR3L, Max. 4GB

1 x SATA
1 x MSATA

1 x Mini PCI-e WIFI Module(4G Module Optional)
1 x Nano SIM slot

Realtek RTL8111E Gigabit Ethernet
Optional 2 x Gigabit Ethernet

RealtekALC662 HD Audio IC

DC IN * 1

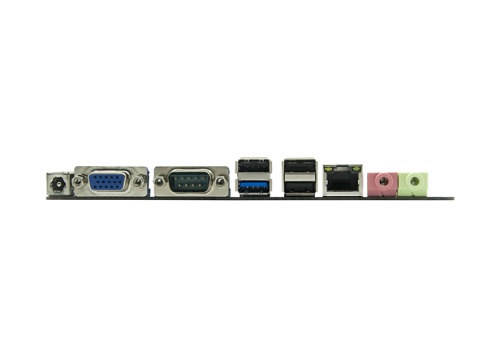

DB-15*1 VGA out, DB-9*1 COM, RS232
RJ45*1
USB2.0*2, USB3.0*2
Audio Jack 2 (Line out , Mic in)

1 x DC IN ,2x2 ATX Connector
1 x HDMI, 1 x LVDS/EDP, 1 x EDP, 1 x LVDS
1 x BAT, 1x2 1.27mm wafer
4 x USB2.0 interface，2x9pin interface
1 x INVERTER, 1x6 wafer
1 x INVERTER Power 6pin Jump， 5/12V
1 x LVDS/EDP PWM 3pin Jump，3.3/5V
1 x Clear COMS 2pin Jump
1 x GPIO, 10pin interface
1 x CPU FAN ，1x4 1.27mm wafer
1 x SATA Power，1x4 2.0mm wafer
1 x Buzzer SPEAK，4pin interface
1 x Front PANEL, 9pin interface（Power/LED/RST)
2 x COM2，RI/5V/12V, 5 x COM，RS232
1 x LPT , 25pin interface
1 x Front Audio, 1 x Speaker

WIN 10/Linux

Support

12V DV IN

170 x 170 mm

 -10℃~60℃

-20℃~70℃

10%~90% （非冷凝)
